- See Figure 1, showing the release date for an EMCP 4.2 flash file. Figure 1: EMCP Software Release Date Other product specific information and data is available from a variety of sources. For more information, contact the Cat dealer or dealer TC nearest you.
- EMCP 4.1 and 4.2 Application and Installation Guide LEBE0006, available from Cat PowerNet, under Products EMCP Controls EMCP 4 EMCP 4.3 and 4.4 Application and Installation Guide LEBE0007, available from Cat PowerNet, under Products EMCP Controls EMCP 4 EMCP 3 Application Note: Reading Event Information via SCADA.
- Electric Power Generation: All Introduction. This Special Instruction will guide the user with step-by-step instructions for replacing a factory installed EMCP 3 with an EMCP 4.1 or an EMCP 4.2 and configuring an EMCP 4.1 or EMCP 4.2 on to a current production Caterpillar generator with an existing EMCP 3 installed.
- The Cat® EMCP 4.2 offers fully featured power metering, protective relaying and engine and generator control and monitoring. Engine and generator controls, diagnostics, and operating information are accessible via the control panel keypads; diagnostics from the EMCP 4 optional modules can be viewed and reset through the EMCP 4.2.
EMCP 4.1 and 4.2 Application and Installation Guide LEBE0006, available from Cat PowerNet, under Products EMCP Controls EMCP 4 EMCP 4.3 and 4.4 Application and Installation Guide LEBE0007, available from Cat PowerNet, under Products EMCP Controls EMCP 4 EMCP 3 Application Note: Reading Event Information via SCADA.
EMCP 4.2 GENERATOR SET CONTROLLER
0

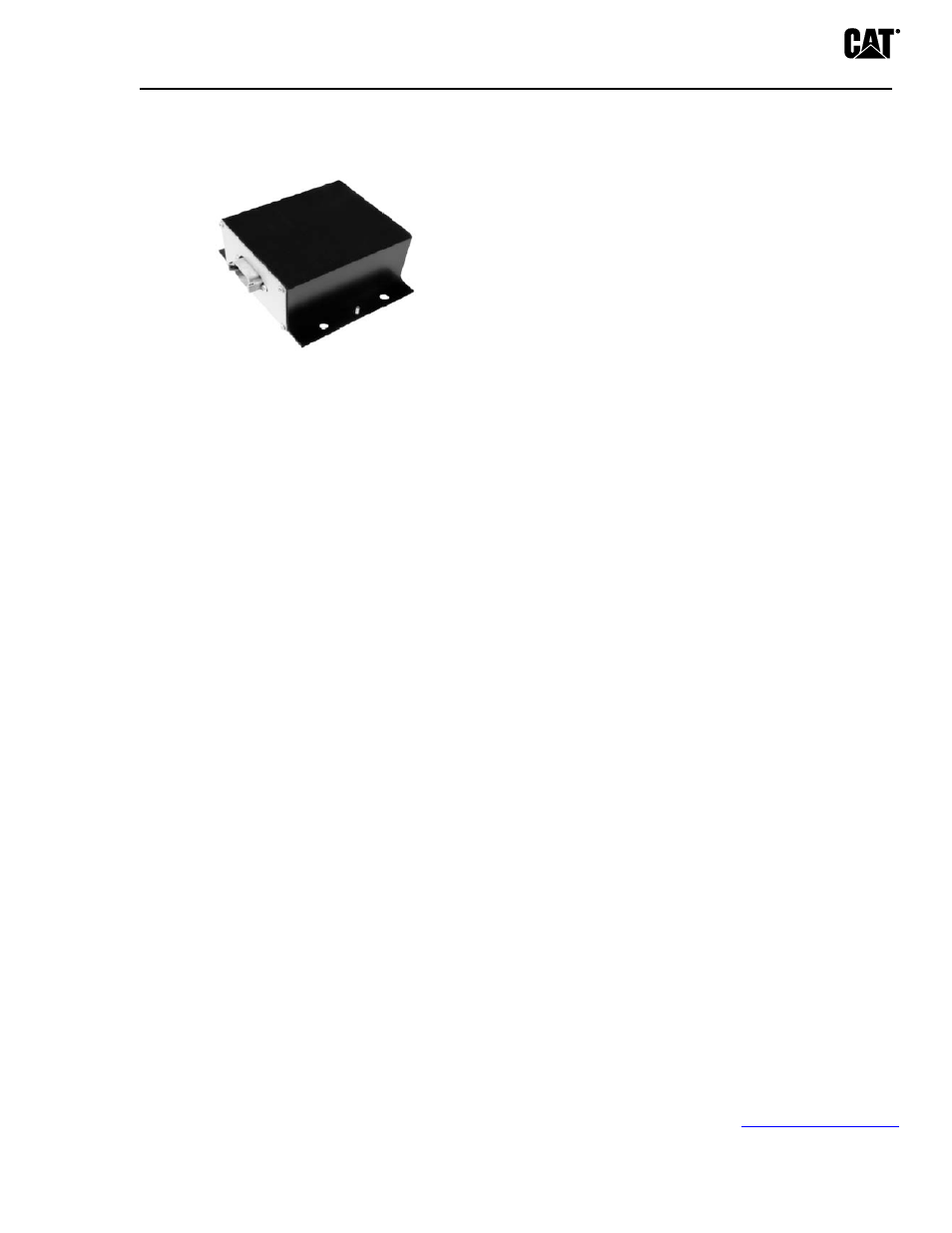

OPTIONAL MODULES
RTD MODULE
The RTD module serves to provide expandable
generator temperature monitoring capability of the
EMCP 4 and is capable of reading up to eight type
2-wire, 3-wire and 4-wire RTD inputs. The RTD
Module has been designed for use on the
Accessory Communication Network and may be
used in either local (package mounted) or remote
(up to 800 feet) application. A maximum of one RTD
Module may be used with a single EMCP 4.2.
THERMOCOUPLE MODULE
The thermocouple module serves to provide
expandable engine and generator temperature
DIGITAL INPUT/OUTPUT MODULE
monitoring capability of the EMCP 4 and is
The Digital Input/Output (DI/O) module serves to
capable of reading up to twenty Type J or K
thermocouple inputs. The thermocouple
provide expandable Input and Output capability
of the EMCP 4 and is capable of reading 12 digital
module has been designed for use on the
accessory communication Network and may be
used in either local (package mounted) or remote
(up to 800 feet) application. A maximum of one
thermocouple modules may be used with a single
EMCP 4.2 on each datalink.
inputs and setting 8 relay outputs. The DI/O
module has been designed for use on the accessory
Communication Network and may be used in
either local (package mounted) or remote
(up to 800 feet) application. A maximum of four DI/O
modules may be used with a single EMCP 4.2.
LEHE0138-0
4
Information contained in this publication may be considered confidential. Discretion is recommended when distributing.
Materials and specifications are subject to change without notice.
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow,” the “Power Edge” trade dress as well as corporate
and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
©2010 Caterpillar
All Rights Reserved.
LEHE0138-00 (03-10)
Printed in U.S.A
EMCP 3.2 GENSET CONTROLLER
OPTIONS
ANNUNCIATOR
The EMCP 3 Annunciator serves to display Genset
system alarm conditions and status indications.
The Annunciator has been designed for use on
the EMCP 3 Communication Network and may be
used in either Local (package mounted) or Remote
(up to 800 feet) application. A maximum of three (3)
Annunciators may be used with a single EMCP 3.2.
REMOTE MONITORING SOFTWARE
The EMCP 3 Remote Monitoring Software Package
is a PC based program which allows the user to
monitor and control a generator set, and is capable
of running on a Windows based operating system.
The Remote Monitoring software allows the user
to configure data monitoring and data acquisition
processes for monitoring, graphing, and logging
of genset data.
DISCRETE INPUT/OUTPUT MODULE
The Discrete Input/Output (DI/O) module serves
to provide expandable Input and Output capability
of the EMCP 3 and is capable of reading 12 discrete
inputs and setting 8 relay outputs. The DI/O Module
has been designed for use on the EMCP 3
Communication Network and may be used in
either Local (package mounted) or Remote (up to
800 feet) application. A maximum of four (4) DI/O
Modules may be used with a single EMCP 3.2.
308 mm
247 mm
57 mm
E M C P 3 . 2
G E N E R A T O R S E T C O N T R O L L E R
